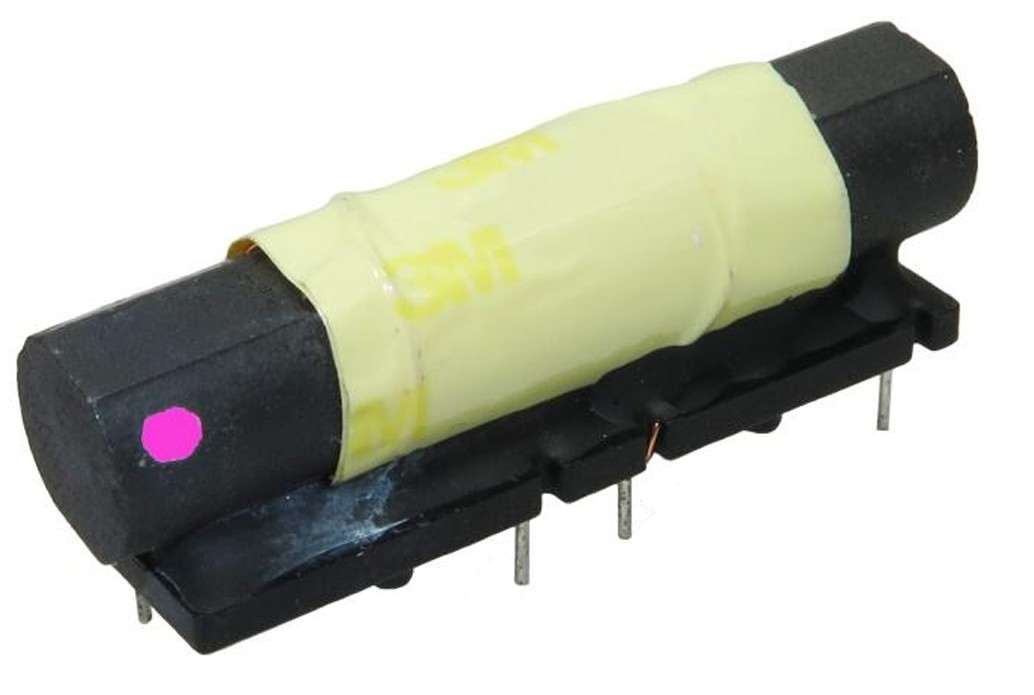

KV Electronics Ferrite Core Antennas use high-permeability ferrite rods to concentrate the magnetic component of radio waves, dramatically improving signal reception compared to air-core designs. The ferrite rod's high magnetic permeability pulls magnetic field lines into itself, inducing a stronger voltage in the wound coil.

How It Works

1. Magnetic Flux: Radio waves consist of electric and magnetic fields. The ferrite rod has high magnetic permeability, meaning it "pulls" the magnetic field lines into itself.
2. Induction: As the magnetic field passes through the rod, it induces a small voltage in the coil of wire wrapped around it.
3. Resonance: This coil is usually connected to a variable capacitor, forming a Tuned Circuit that allows the radio to select a specific frequency.

Key Features

• Ferrite material: Mn-Zn (low frequency) or Ni-Zn (high frequency)
• Frequency range: 100kHz – 30MHz (AM/LW/MW/SW)
• High initial permeability: μi = 400 – 10,000
• Fly-wire and through-hole bobbin versions
• Custom rod diameter, length, and coil turns
• Operating temperature: −40°C to +85°C

Applications

• AM/LW/MW portable radio receivers
• RFID reader antenna coils (125kHz, 134kHz)
• NFC and contactless card systems
• Wireless sensor networks
• Direction-finding equipment
