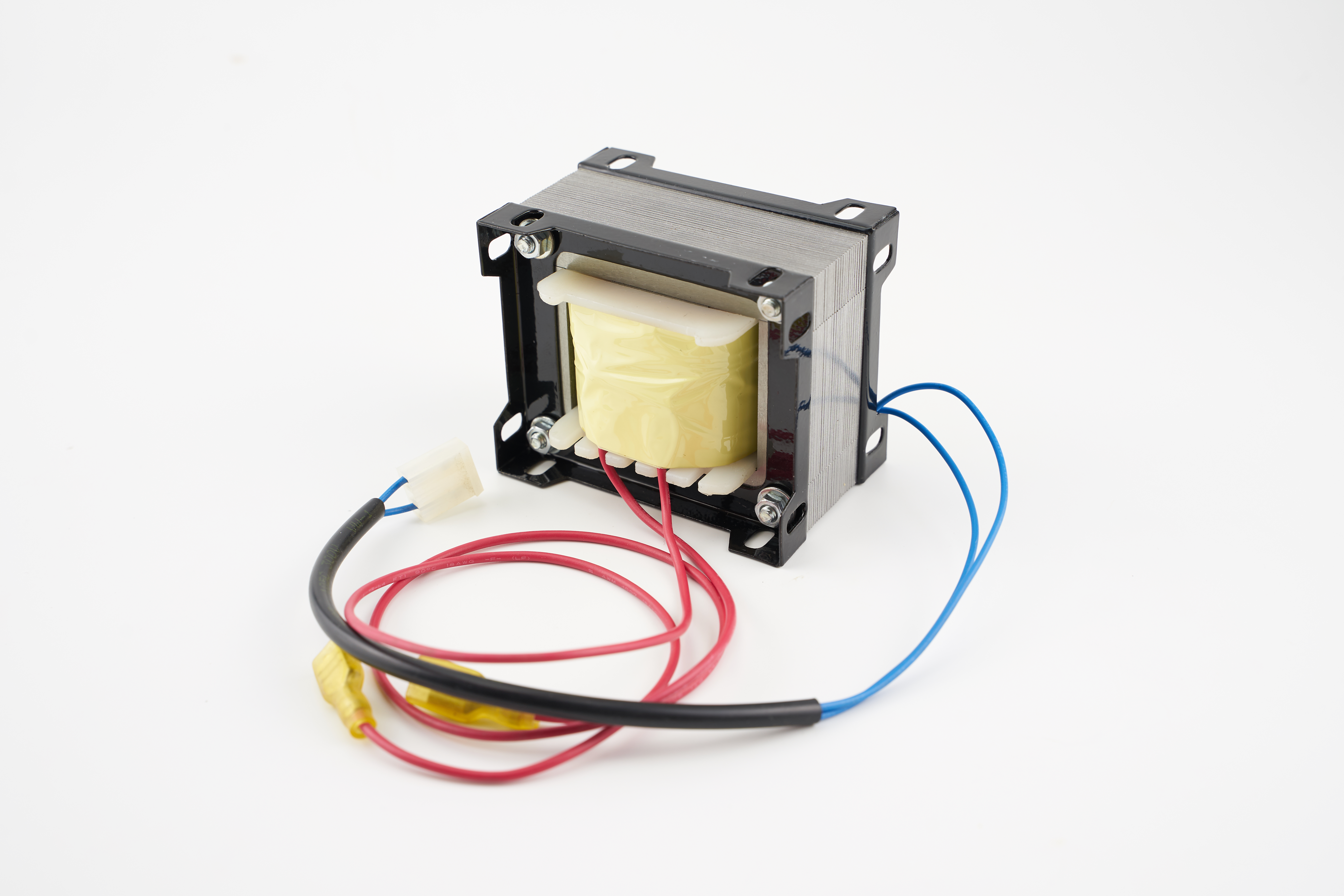

Power Transformer
Heavy-duty EI/UI laminated steel core isolation transformers, 1W to 500W, for 220–240V mains applications.
Specifications
| Core Type | EI/UI laminated silicon steel |
| Input Voltage | 220–240V AC, 50/60Hz |
| Power Rating | 1W – 500W |
| Core Size Range | 28mm – 96mm |
| Insulation Class | Class B (130°C) / F (155°C) / H (180°C) |
| Winding | Bifilar, parallel, sectional |
| Voltage Regulation | <5% at full load (typical) |
| Standards | UL / CE / VDE (on request) |
| Compliance | RoHS3 |
Product Overview
KV Electronics Power and Isolation Transformers are built with high-quality EI/UI laminated silicon steel cores, designed specifically for robust low-frequency power conversion and mains isolation. Engineered for 220–240V AC applications, these transformers feature reinforced isolation layers using premium Mylar, PET, or Nomex materials to ensure superior dielectric strength and safety compliance.
Advanced winding techniques, including bifilar and parallel configurations, are utilized to optimize efficiency and minimize losses. The laminated core construction delivers low magnetizing current and excellent voltage regulation across the full load range.
Power Rating & Core Size Guide
| 28mm – 48mm core | 1W – 40W |
| 48mm – 76mm core | 40W – 200W |
| 76mm – 96mm core | 200W – 500W |
Key Features
- Core type: EI/UI grain-oriented silicon steel laminations
- Input voltage: 220–240V AC, 50/60Hz
- Power range: 1W – 500W
- Insulation: Mylar, PET, or Nomex (Class B/F/H)
- Winding: bifilar, parallel, or sectional
- Multiple secondary outputs; custom voltage ratios
- UL, CE, or VDE compliant on request
Applications
- Linear power supplies
- Industrial control panels
- Home appliances
- Audio amplifiers
- Medical equipment isolation
